Ductile Iron Gully Grating Hinged - 25 Tonne x 302mm x 302mm
In stock
Code
CD60DDIKMC
| Code | CD60DDIKMC |
|---|---|
| EAN Code | 0798237219615 |
| Weight (kg) | 13.000000 |
| Brand | Clark-Drain |
| Colour | Black Bitumen Coated |
| Material | Ductile Iron |
| Tonne Loading | 25 Tonne |
| Dimension | 400mm x 362mm x 75mm |
| Specification | BS EN124-2:2015 |
| Size | 302mm x 302mm Opening |

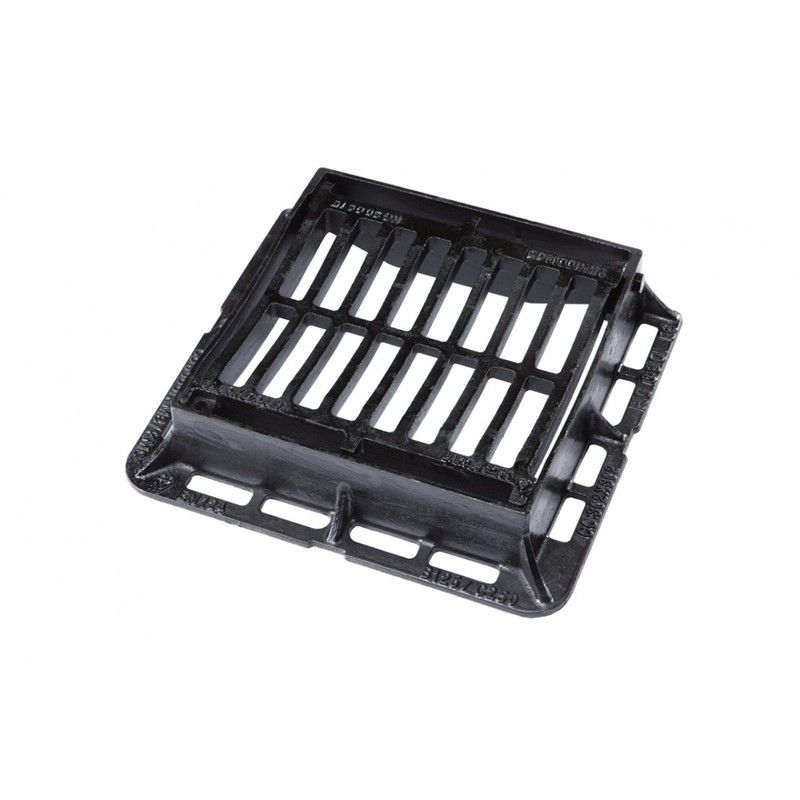

This hinged gully grating and frame is made from ductile iron. It is compliant with the design requirements of BS EN124-2:2015.
It has a 25 Tonne Load Rating making it ideal for use on car parks and kerbside & pedestrian areas.
There is a 3-sided flange for flush installation against a kerb, and a captive hinge to guard against theft.
This grating has an integral lever point to aid opening.
The internal dimensions (clear opening size) of this product are 302mm x 302mm for use with a ?mm diameter gully such as our GULLY450 and our GULLY450X900.
The overall dimensions of this product are 400mm x 362mm x 75mm. The grating comes with a black bitumen coating.
Manufactured by Clark-Drain.
